VSAT Network Architecture Explained

A Very Small Aperture Terminal (VSAT) network is a satellite-based communication system that connects geographically dispersed remote sites to a central hub through a shared satellite transponder. VSAT networks are a foundational element of satellite communications, enabling data, voice, and video connectivity in locations where terrestrial infrastructure is unavailable, unreliable, or cost-prohibitive.

Typical deployment environments include offshore energy platforms, maritime vessels, remote mining and construction sites, rural enterprise branches, government field offices, and disaster recovery operations. In each case, the VSAT network provides a standardised communication architecture that can be deployed rapidly and operated with minimal on-site technical expertise.

Understanding VSAT network architecture — the relationship between the hub station, the remote terminals, and the satellite space segment — is essential for system designers, network planners, and operations engineers who need to specify, deploy, or troubleshoot satellite communication systems.

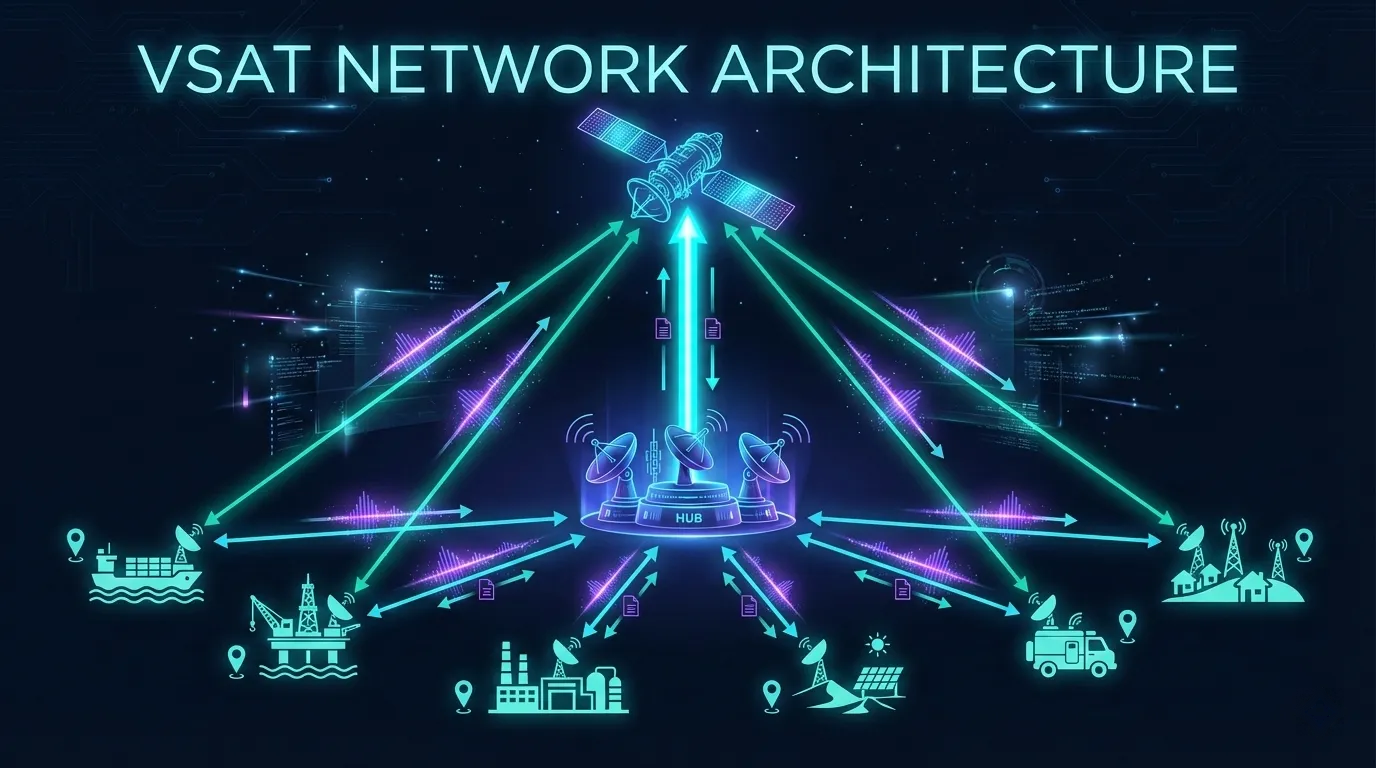

End-to-End Architecture

Core Components of a VSAT Network

Every VSAT network consists of three fundamental segments that work together to establish and maintain satellite communication links.

The remote terminal (also called the VSAT station or remote site) is the end-user access point. It consists of a small-aperture antenna (typically 0.75 to 2.4 metres), a Block Upconverter (BUC) for transmission, a Low Noise Block downconverter (LNB) for reception, and an indoor modem unit that interfaces with the customer's local network equipment.

The satellite space segment provides the relay function. A geostationary (GEO) satellite positioned at 35,786 km altitude receives uplink signals from terminals and hub stations, translates them to a different frequency band, amplifies them, and retransmits them on the downlink. The satellite acts as a repeater in the sky, extending the reach of the ground-based network across continental or oceanic distances.

The hub station (also called the Network Operations Centre or teleport) is the central control and routing point for the network. The hub manages bandwidth allocation, controls access to the satellite transponder, routes traffic between remote terminals, and provides the gateway connection to terrestrial networks including the internet and private enterprise WANs.

• Remote terminal: small antenna (0.75 to 2.4 m), BUC, LNB, and indoor modem
• Space segment: GEO satellite transponder providing relay and frequency translation
• Hub station: central control, bandwidth management, traffic routing, and terrestrial gateway
• All three segments must operate in coordination for the network to function

Terminal Equipment Reference | Ground Segment Reference | Glossary: VSAT, Transponder | Glossary: GEO, Hub, LNB

VSAT Hub Station Role

The hub station is the operational centre of a VSAT network. In a typical star-topology network, all traffic between remote terminals passes through the hub — there is no direct terminal-to-terminal communication. The hub therefore serves as both the traffic router and the network controller.

Network control functions include bandwidth allocation using protocols such as DVB-S2/S2X for the outbound carrier (hub to remotes) and MF-TDMA or SCPC for the return carriers (remotes to hub). The hub dynamically assigns time slots, frequency channels, and modulation parameters to each remote terminal based on traffic demand and link conditions. This centralised control enables efficient use of limited satellite transponder capacity.

Traffic routing at the hub connects the satellite network to terrestrial infrastructure. The hub gateway typically provides IP routing, firewall services, traffic shaping and Quality of Service (QoS) enforcement, and connectivity to internet exchange points or private network backbones. For enterprise VSAT networks, the hub may also provide VPN termination, multicast distribution, and application-layer acceleration.

Network synchronisation is managed by the hub, which generates the timing references that all remote terminals lock onto. Accurate timing is essential for TDMA-based return channel access, where remote terminals must transmit their bursts in precisely assigned time slots to avoid collisions with other terminals sharing the same transponder capacity.

• Central traffic routing: all terminal-to-terminal and terminal-to-internet traffic passes through the hub
• Bandwidth allocation: DVB-S2/S2X outbound, MF-TDMA or SCPC return channel management
• Gateway connectivity: IP routing, QoS, firewall, VPN termination, internet peering
• Timing and synchronisation: hub-generated references for TDMA slot alignment
• Network monitoring: real-time visibility into terminal status, link quality, and traffic patterns

Network Management Reference

Remote Terminal Role

The remote terminal is the user-facing element of the VSAT network. Its primary function is to convert between the customer's local network traffic (typically Ethernet IP) and the satellite RF signal, and to do so within the bandwidth and timing constraints assigned by the hub.

The outdoor unit (ODU) consists of the antenna reflector, the feed assembly, the BUC, and the LNB. The antenna is typically a parabolic reflector with a diameter of 0.75 to 2.4 metres, depending on the satellite band (Ku or Ka), the required throughput, and the link margin needed for the operating environment. The BUC converts the modem's intermediate frequency (IF) signal to the satellite uplink frequency and amplifies it for transmission. BUC power typically ranges from 2 to 25 watts depending on the band and throughput requirements. The LNB receives the satellite downlink signal, amplifies it with low noise, and downconverts it to IF for the modem.

The indoor unit (IDU) is the satellite modem, which performs baseband processing including modulation and demodulation, Forward Error Correction (FEC) encoding and decoding, encapsulation of IP packets into the satellite protocol frames, and management of the return channel access protocol (TDMA burst timing or SCPC carrier control). The modem provides standard Ethernet ports for connection to the customer premises equipment such as routers, switches, or directly to end-user devices.

Site installation requires precise antenna pointing to the target satellite, typically within 0.1 to 0.3 degrees of accuracy. Cross-polarisation alignment must also be performed to minimise interference with adjacent satellites. Once commissioned, the remote terminal operates autonomously under the control of the hub, requiring minimal local intervention.

• Antenna: 0.75 to 2.4 m parabolic reflector, Ku or Ka band
• BUC: 2 to 25 W transmitter converting IF to satellite uplink frequency
• LNB: low-noise receiver converting satellite downlink to IF
• Modem (IDU): modulation, FEC, IP encapsulation, TDMA/SCPC access control
• Pointing accuracy: 0.1 to 0.3 degrees; cross-polarisation alignment required

Glossary: BUC, EIRP, FEC | Glossary: Modem, Noise Figure

Satellite Space Segment Role

The space segment in a VSAT network is typically a transponder (or set of transponders) on a geostationary satellite. The satellite serves as an orbiting relay, receiving signals from the ground on one frequency band (the uplink) and retransmitting them on a different frequency band (the downlink). This frequency translation prevents the high-power downlink signal from interfering with the low-power uplink signal at the satellite.

Most VSAT networks use bent-pipe (transparent) transponders, where the satellite amplifies and frequency-shifts the signal without demodulating or processing the data content. The satellite is agnostic to the modulation scheme, protocol, or data payload — it simply acts as an analogue repeater. This simplicity means the same satellite transponder can simultaneously carry traffic from multiple independent VSAT networks, each using different hub equipment and air interface standards.

Transponder bandwidth is a shared and finite resource. A typical Ku band transponder provides 36 to 72 MHz of usable bandwidth, while Ka band HTS spot beams may offer 100 to 500 MHz per beam. The VSAT hub must manage its allocated portion of this bandwidth to serve all remote terminals within the network, balancing throughput demands against the available transponder capacity.

Satellite EIRP (Effective Isotropic Radiated Power) and G/T (Gain-to-noise-Temperature ratio) define the satellite's transmit and receive performance respectively. These parameters, combined with the ground terminal characteristics and the atmospheric conditions, determine the achievable link budget — the signal-to-noise ratio available for data transmission at a given bit rate and error rate.

• Bent-pipe transponder: amplifies and frequency-translates without demodulating the data
• Frequency translation: uplink and downlink on different bands to avoid self-interference
• Transponder bandwidth: 36 to 72 MHz (Ku), 100 to 500 MHz per beam (Ka HTS)
• EIRP and G/T: key satellite parameters that determine link budget performance
• Shared resource: multiple networks can share the same transponder simultaneously

Glossary: Satellite, Transponder

VSAT Network Topologies

The logical arrangement of communication paths between hub and remote terminals defines the network topology. VSAT networks employ three primary topologies, each with distinct tradeoffs in latency, bandwidth efficiency, and infrastructure complexity.

Star Topology

Star topology is the most widely deployed VSAT network architecture. In a star network, all communication flows between the central hub and the remote terminals. Traffic from one remote to another must traverse two satellite hops — from the originating remote up to the satellite, down to the hub, processed and routed, back up to the satellite, and down to the destination remote.

The primary advantage of star topology is centralised control and simplicity. The hub manages all bandwidth allocation, routing, and network monitoring from a single point. Remote terminals are simple and cost-effective because they only need to communicate with the hub, not with each other. Adding new remote sites requires no changes to existing terminals.

The disadvantage is the double-hop latency for terminal-to-terminal traffic. On a GEO satellite link, each hop adds approximately 240 to 300 ms of propagation delay, resulting in a total round-trip time of approximately 960 to 1,200 ms for remote-to-remote communication. For hub-to-remote traffic (single hop), the latency is the standard 480 to 600 ms.

• All traffic routes through the central hub
• Double-hop latency for remote-to-remote: 960 to 1,200 ms RTT on GEO
• Single-hop for hub-to-remote: 480 to 600 ms RTT on GEO
• Simple remote terminals; centralised management
• Most common architecture for enterprise and service provider networks

Mesh Topology

Mesh topology enables direct terminal-to-terminal communication over the satellite link without routing through a central hub. Each terminal can transmit directly to any other terminal in the network using a single satellite hop, reducing the round-trip time to 480 to 600 ms for any terminal pair.

Mesh networks require more capable (and more expensive) remote terminals, because each terminal must be able to dynamically establish carriers to multiple destinations. The terminal modem must support demand-assigned multiple access (DAMA) or similar protocols to set up and tear down point-to-point connections as needed. Bandwidth management is distributed rather than centralised.

Full mesh is practical only for small networks (typically fewer than 20 to 30 terminals), because the number of potential connections grows quadratically with the number of terminals. Partial mesh configurations, where only selected terminals have direct connectivity, are more common in practice.

• Direct terminal-to-terminal via single satellite hop
• Single-hop latency: 480 to 600 ms RTT on GEO for all paths
• Requires DAMA or similar demand-assigned access protocols
• More complex and costly remote terminals
• Practical for small networks (fewer than 20 to 30 terminals)

Hybrid Star-Mesh Topology

Hybrid topology combines elements of both star and mesh architectures. Routine traffic (internet access, centralised application data, network management) flows through the hub in a star configuration, while selected high-priority or latency-sensitive terminal-to-terminal traffic uses direct mesh links.

This approach optimises the network by using the cost-effective star architecture for the majority of traffic while providing single-hop latency where it matters most — typically for voice calls or real-time data exchange between specific site pairs. The hub retains overall network control and monitoring visibility.

Hybrid networks require terminals that support both star-mode operation (communicating with the hub) and mesh-mode operation (establishing direct links to peer terminals). Modern VSAT platforms increasingly support this dual-mode capability as a standard feature.

• Star for routine traffic; mesh for latency-sensitive terminal-to-terminal
• Hub retains centralised control and monitoring
• Dual-mode terminals required (star and mesh capable)
• Balances cost efficiency with latency optimisation

Example Deployment Scenarios

VSAT network architecture adapts to a wide range of operating environments. The following scenarios illustrate how the core architecture maps to specific industry requirements.

Maritime

Maritime VSAT networks connect vessels at sea to shore-based operations centres and the internet. The remote terminal is installed on the vessel with a stabilised antenna that compensates for pitch, roll, and yaw. The hub station is typically located at a coastal teleport.

Star topology dominates maritime VSAT because most traffic flows between the vessel and shore (operational data, crew welfare internet, safety communications). Antenna sizes are typically 60 cm to 1.5 m, with Ku band or Ka band operation depending on the coverage region and throughput requirements.

• Stabilised antenna on vessel; coastal teleport hub
• Star topology for vessel-to-shore traffic
• Ku or Ka band; 60 cm to 1.5 m antenna

Maritime Connectivity Solutions

Energy and Oil & Gas

Offshore platforms and remote onshore facilities use VSAT networks for SCADA telemetry, safety system communications, operational data transfer, and crew welfare connectivity. These deployments typically require high availability and are often provisioned with redundant links.

Star topology with a dedicated hub or managed service is standard. Fixed antennas of 1.2 to 2.4 m provide robust link margins for high-availability operation. Dual-band or dual-satellite configurations are common for critical infrastructure sites.

• SCADA, safety, and crew welfare applications
• High-availability requirements; redundant link configurations
• Fixed 1.2 to 2.4 m antennas; Ku or Ka band

Energy Sector Solutions

Desert and Remote Infrastructure

Desert and arid-region deployments benefit from favourable atmospheric conditions (minimal rain fade), allowing smaller antennas and higher throughput. VSAT networks connect remote construction camps, pipeline monitoring stations, mining sites, and rural government offices.

These environments often involve large numbers of geographically dispersed low-traffic sites, making star topology with shared bandwidth (MF-TDMA return channel) the most cost-effective architecture. Ka band is increasingly preferred in arid regions due to the throughput advantage and smaller terminal footprint.

• Minimal rain fade allows smaller antennas and higher spectral efficiency
• Star topology with shared MF-TDMA return channel
• Ka band preferred for throughput advantage in dry climates

Desert Infrastructure Solutions

Operational Considerations

Operating a VSAT network requires attention to several engineering and operational factors that directly impact network performance and reliability.

Latency is inherent to GEO-based VSAT networks. The 480 to 600 ms round-trip time for a single satellite hop affects real-time applications such as voice and video, and impacts TCP throughput due to the bandwidth-delay product. Network architects mitigate these effects through TCP acceleration (Performance Enhancing Proxies), application-layer caching, and protocol optimisation.

Link budget management ensures that each remote terminal maintains sufficient signal-to-noise ratio for reliable communication. The link budget accounts for transmit power, antenna gain, free-space path loss, atmospheric attenuation (particularly rain fade for Ka band), and receiver noise performance. Adaptive Coding and Modulation (ACM) dynamically adjusts the modulation and FEC parameters to maximise throughput under varying link conditions.

Network monitoring provides real-time visibility into terminal status, link quality metrics (Es/No, BER), traffic utilisation, and alarm conditions. Centralised monitoring from the hub enables rapid identification and diagnosis of link degradation, equipment failures, or interference events. Modern VSAT platforms provide web-based NMS (Network Management System) interfaces with automated alerting and reporting.

Availability and redundancy are critical for mission-critical deployments. Techniques include redundant hub equipment (1+1 or N+1 configurations), backup satellite capacity on alternative transponders or orbital slots, dual-feed antenna systems, and automatic switchover mechanisms. Target availability for enterprise VSAT services typically ranges from 99.5% to 99.9%.

• GEO latency: 480 to 600 ms RTT per hop; mitigated by TCP acceleration and caching
• Link budget: transmit power, antenna gain, path loss, rain fade, and receiver noise
• ACM: dynamic modulation and FEC adjustment for varying link conditions
• Monitoring: real-time Es/No, BER, traffic, and alarm tracking from the hub NMS
• Availability targets: 99.5% to 99.9% for enterprise services; redundancy at hub and space segment

Satellite Link Budget Calculation | Satellite Latency Comparison: GEO vs LEO vs MEO | Network Management Reference

Simplified VSAT Network Flow Example

Understanding the end-to-end signal flow through a VSAT network clarifies how the three segments interact for a typical data transaction.

When a user at a remote site sends a request (for example, loading a web page), the following sequence occurs: the request leaves the user device as an IP packet and reaches the VSAT modem via the local Ethernet connection. The modem encapsulates the packet into the satellite protocol frame, applies FEC encoding, modulates it onto the assigned return channel carrier, and passes it to the BUC. The BUC upconverts the signal to the satellite uplink frequency and transmits it through the antenna toward the satellite.

The satellite transponder receives the uplink signal, translates it to the downlink frequency, amplifies it, and retransmits it toward the hub station coverage area. The hub antenna and LNB receive the downlink signal, and the hub demodulator extracts the original IP packet. The hub router forwards the packet to the internet or the destination network.

The return path follows the same sequence in reverse: the response from the internet arrives at the hub, is encapsulated into the outbound DVB-S2/S2X carrier, transmitted up to the satellite, relayed back down, and received by the remote terminal modem, which delivers the IP packet to the user device. The complete round trip through this path takes 480 to 600 ms on a GEO satellite link.

• Outbound (remote to hub): user device, modem, BUC, antenna, satellite, hub antenna, hub router, internet
• Return (hub to remote): internet, hub router, hub modulator, hub antenna, satellite, remote antenna, LNB, modem, user device
• Each direction traverses one satellite hop (approximately 240 to 300 ms propagation)
• Total single-transaction RTT: 480 to 600 ms on GEO
• DVB-S2/S2X for outbound (hub to remotes); MF-TDMA or SCPC for return (remotes to hub)

How Satellite Internet Works

Summary

VSAT network architecture is built on the coordinated operation of three segments: the remote terminal, the satellite space segment, and the hub station. Each segment plays a distinct and essential role — the terminal provides user access, the satellite provides the relay link across distance, and the hub provides centralised control, routing, and terrestrial connectivity.

The choice of network topology — star, mesh, or hybrid — determines the latency characteristics, bandwidth efficiency, and terminal complexity of the system. Star topology dominates commercial VSAT deployments due to its simplicity and cost-effectiveness, while mesh and hybrid configurations serve specialised requirements for low-latency terminal-to-terminal communication.

VSAT networks remain one of the most widely deployed satellite communication architectures, serving maritime, energy, government, enterprise, and rural connectivity applications across the globe. Understanding the architectural components and their interactions is fundamental to designing, deploying, and operating reliable satellite communication systems.
